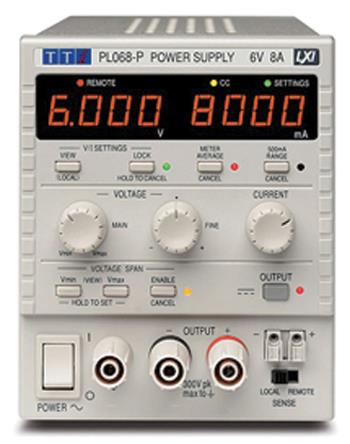

PL068-P Precision DC Bench Power Supply
Ref: PL068P
£560.00 £504.00 excl. VAT £604.80 inc. VATLinear regulation - for the best performance
Ultra-compact design - uses up less space
True Analog controls - for ease of use
S-Lock function - instantly lock settings
V-Span function - customise the voltage range
Low current range and current meter averaging
DC output switches and "view limits" button
Selectable remote sense terminals
0V to 6V/1mA to 8A; 0V to 6V/0.1mA to 500mA; (48W max.)
Output Setting & Control
Voltage Setting: By coarse and fine controls.
Current Setting: By single logarithmic control.
Output Mode: Constant voltage or constant current with automatic cross-over. CC indicator in constant current mode.
Output Switch: Electronic, non isolating. Preset voltage and current limit displayed when output off.
Output rise time no load <15ms.
|
The New PL-P Series is the bus programmable version of the latest linear regulated power supply series from TTi. The New PL-P series includes all of the manual control features of the New PL series, but adds comprehensive remote control facilities. The ultra-compact rack-modular sizing makes it ideally suited to rack mounted system applications, while its user-friendly manual controls are retained for bench top applications. Digital Interfaces To meet the varying needs of today's engineers, a comprehensive array of interfaces is provided. RS-232, USB and LAN (Ethernet) with LXI support are provided as standard. Each of the digital bus interfaces provides full control of voltage, current, and output on/off, plus read-back of voltage, current and status. |
   |
|
Analog Remote Control Single output PL-P units include non-isolated analog voltage control of voltage and current. Analog control outputs are also incorporated to enable easy parallel connection of multiple units in a master-slave configuration. |
Please see pdf for full specification.
