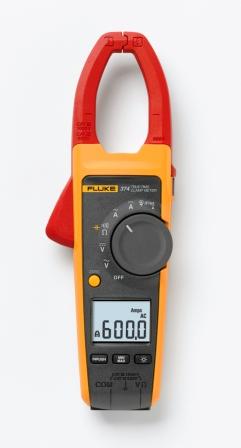

Fluke 374 FC True-rms AC/DC Clamp Meter
Ref: 4696001
£508.00 £444.50 excl. VAT £533.40 inc. VATTrue-rms AC/DC Clamp Meter
Included accessories:
Coated instruction card
Safety information sheet
Soft carrying case
TL75 test leads
Two AA Alkaline batteries
The Fluke 374 True-rms Clamp Meter can read up to 600 V and 600 A in both ac and dc modes. Additionally, the 374 is compatible with the new iFlex flexible current probe (sold separately), which increases the measurement range to 2500 A ac and provides increased display flexibility, and improved wire access.
Safety Conformance: EN/IEC 61010-1:2001; 1000V CAT III, 600V CAT IV
Specifications
Diameter of measurable conductor 01.3” or 34 mm max
Operating temperature -14 to 122ºF (-10 to 50ºC)
Storage Temperature -40 to 140ºF (-40 to 60ºC)
Operating Humidity < 90% @ 10 to 30 ºC, < 75% @ 30 to 40ºC
Operating Altitude 0 to 3000 m
Size 246 x 83 x 43 mm, (9.685 x 3.267 x 1.692 in.)
Weight 388g, (14 oz.)
Temperature Coefficient 0.01% ºC
(<18ºC or > 28ºC)
Warranty Three years for electronics
One year for cable and clamp assembly
Features and benefits
iFlex flexible current probe (sold separately) expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
CAT IV 600 V, CAT III 1000 V
Propietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
Ergonomic design fits in your hand and can be used while wearing personal protective equipment
Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
Three-year warranty
Soft carrying case
