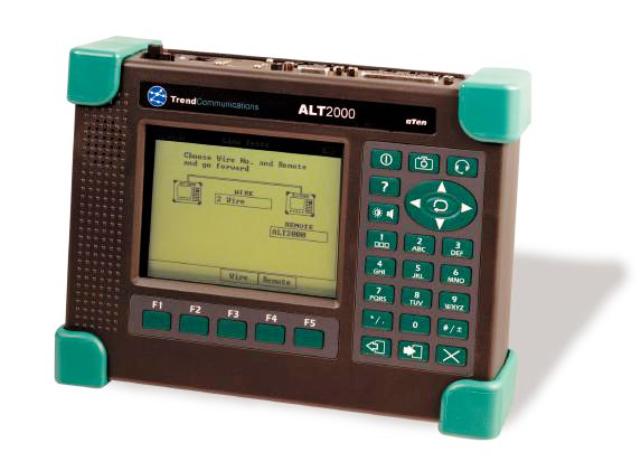

The ALT2000 is a sophisticated analogue tester with a wide range of test
methods covering ADSL2, ADSL2+, ADSL, SHDSL, HDSL, POTS, Modem,
ISDN, E1 and T1.
Because engineers with analogue performance testing skills have become a
scarce resource, ALT2000 includes both preprogrammed and internationally
standardised tests for rapid Pass/Fail testing by field engineers.
The more advanced users can take advantage of the full capabilities of ALT2000 to rapidly pin-point and resolve line problems.
Automatic line tests with Master/Slave mode for one-man end-toend testing
Built-in Pass/Fail templates
A wide range of analogue tests
High-performance spectrum analyser from 20 Hz to 2.2 MHz
TDR option to locate and identify faults
Portable, hand-held
Many line types included
2-wire and 4-wire testing
Unbalanced cable test
PC utility included as standard
