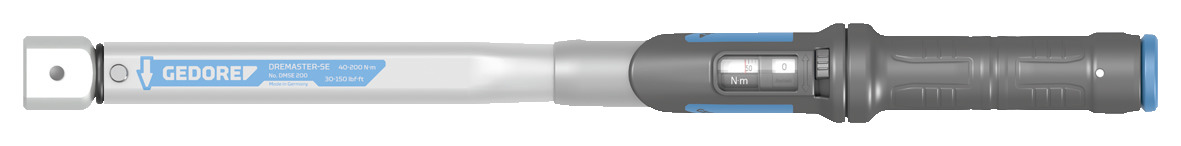

Torque wrench DREMASTER SE 14x18, 80-400 Nm
Ref: 2641496
£377.20 £264.04 excl. VAT £316.85 inc. VATFeatures:
- Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard
- For controlled bi-directional tightening
- Sturdy, varnished tubular steel construction, with zinc-plated rectangular cavity (9x12 mm or 14x18mm) and high-grade plastic parts
- Ergonomically shaped plastic handgrip with calibration aid
- Change-over between N·m main scale and lbf·ft ancillary scale to avoid reading errors when setting the torque wante
- With micrometre scale for main N·m scale for setting interim values
- Release system triggers a tactile and audible signal
- Ergonomic system for torque adjustment with reference symbol
- Secured adjusting/setting system
- Factory depth gauge: 17.5 mm (9x12 mm) or 25 mm (14x18 mm)
- Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise
- Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket).
Specification:
- Length (L, L1): 677,2 mm
- Width: 33,0 mm
- Scale Divisions:-10 N·m
- Range of Work / Measurement Nm (min/max): 80-400 N·m
- Drive Connector Rectangular: 14 x 18 mm
- Depth Gauge (C, L): 25,0 mm
- Range of Work / Measurement lbf.ft (Min/Max): 60-300 lbf·ft
- Packing Unit: 1 Piece
- Distance from Middle of Handgrip to Pivot Point: 604,9 mm
- Distance from Middle of Screw to Pivot Point: 42 mm
- Scale Ring Graduation: 1 N·m N·m
- Weight: 2 kg
